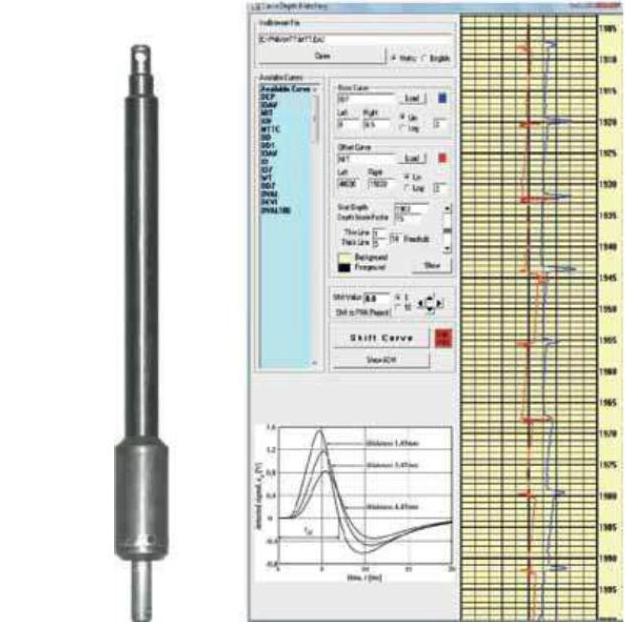

The 3-1/2” Omni directional thichness with temp (ODT/ TEMP) measures the magnetic properties of the pipe material to determine the remaining wall thickness.

When this tool is run together with the MultiFinger Caliper, real time pipe ID and OD measurements can be calculated. The MFC / ODT combination thereby shows up any deformation and / or corrosion on both the inner and the outer walls of the pipe in real time.

Specifications

• Range: 100 to 245 mm (4” to 10”)
• Accuracy: +-1%
• Resolution: 0.0025 mm (0.0001”)
• Max Pressure: 15000Psi (103.4 MPa)
• Body OD: 2 9/32" (58mmm)
• Min hole diameter: 3 3/4" (95mmm)
• Max hole diameter: 10" (254mmm)
• Logging speed: 29 ft/min (9 m/min)
