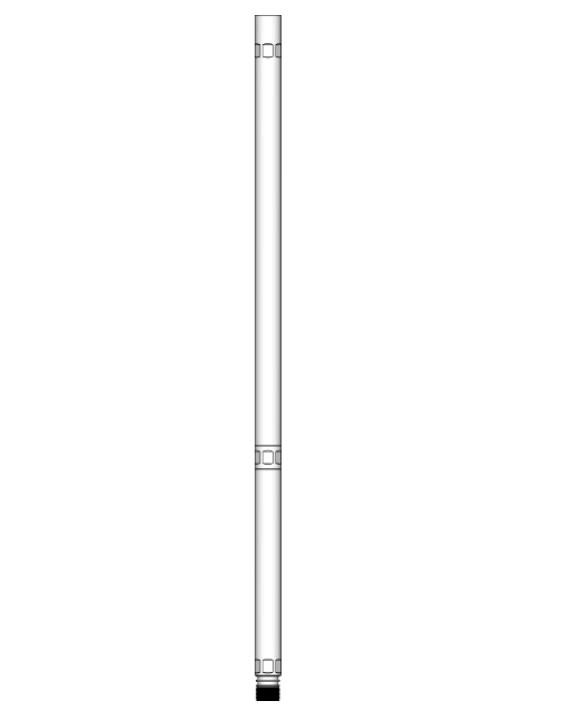

The Production Logging Tool provides a complete solution for acquiring, recording, and processing surface and downhole well production data.

This easy to operate, portable logging system is offered in a 1 3/8” and 1” diameter. Surface Read out (SRO) version with a memory option is available for the 1 3/8” diameter tool. The high speed instrument bus and smart sensor based tools allow the operator to interchange and configure the tool string to suit well conditions.

The following sensor modules are available:

• Accelerometer
• Gamma Ray
• Casing Collar Locator
• Quartz and Sapphire Pressure
• Fast Response Temperature
• Fluid Dielectric (Capacitance)
• Acoustic Density

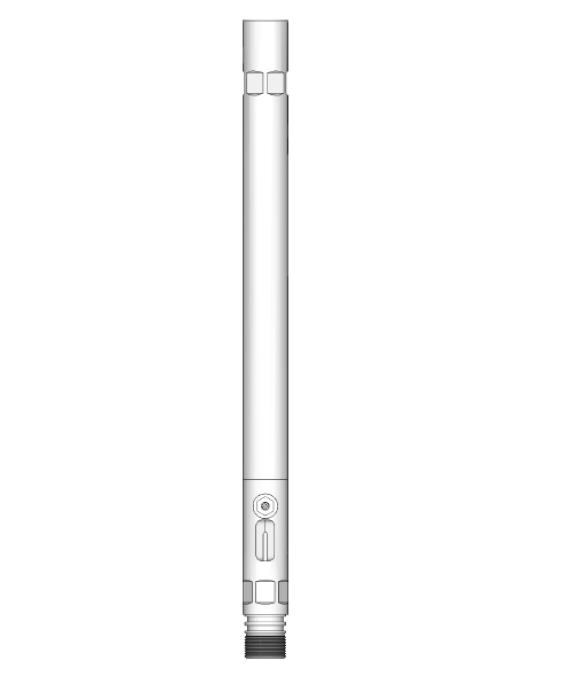

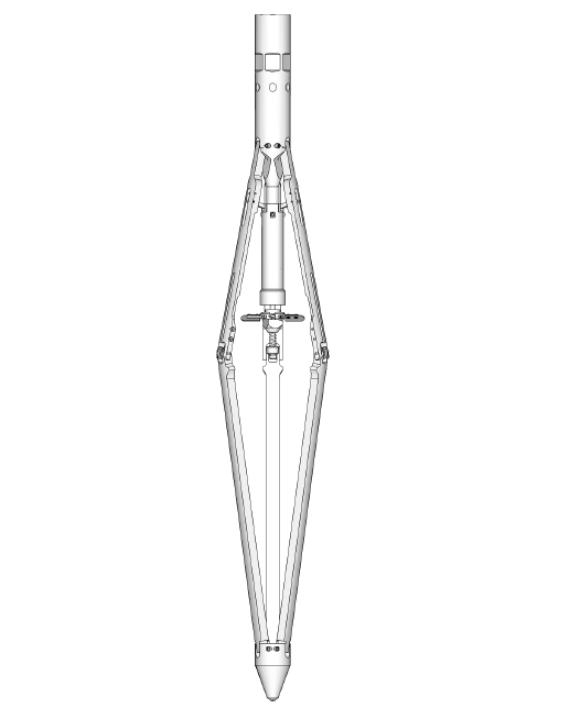

• Fullbore Folding Flowmeter

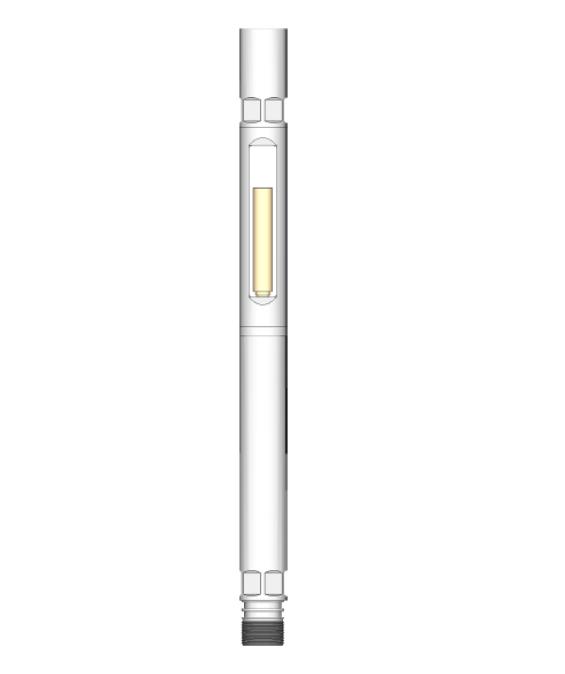

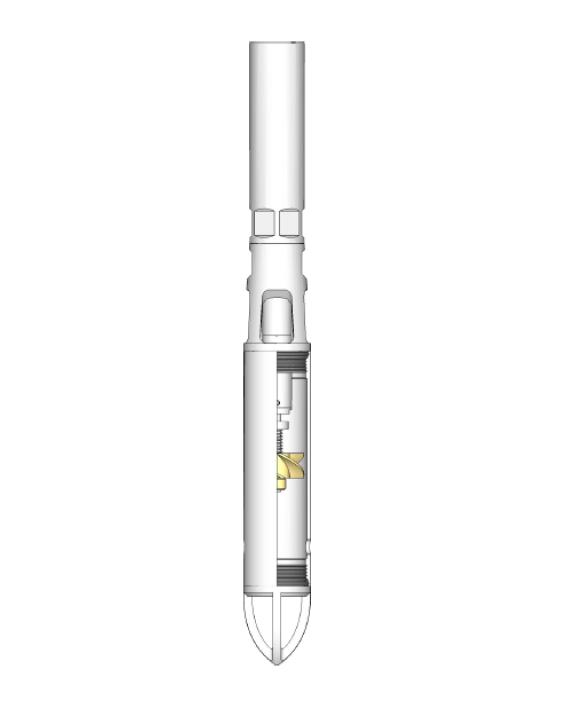

• Caged Flowmeter
• Inline Flowmeter
• 4 Arm Roller Centralizer
• X-Y caliper

How it works

Specifications

Main features

• The Telemetry tool's bidirectional, high-speed, digital communications bus allows the operator to log, record and view downhole data from all sensors inreal time over conventional, single conductor wireline.

  A unique feature of the bidirectional communication link is that it allows the operator to query each smart sensor at any time, for key configuration parameters such as its serial number and position in the tool string.

  This feature combined with the database architecture greatly automates the setup and calibration procedures prior to each survey.

• • Spinner
  • Range: +/- 200 rps
  • Operating Diameter: 1.81” minimum Caged Spinner
  • Resolution: 0.125 rps
  • Accuracy: +/- 2%
  • Threshold in Line: 8 ft/min (oil flow)
  • Threshold fullbore:4 ft/min (oil flow)
  • Threshold fullbore:2 ft/min (oil flow)


  • Temperature
  • Range: -40° C to 177° C
  • Resolution: 0.01° C
  • Accuracy: +/- 1° C
  • Accuracy: +/- 2%


  • Gamma Ray
  • Detector Type: Scintillation
  • Range: 0 - 10,000 API
  >

  • Accelerometer
  • Range: +/- 5 g
  • Resolution: 0.01 g
  • Accuracy: +/- 0.1 g


  • Pressure
  • Range: Sapphire 15,000 psi; Quartz 15,000 psi
  • Resolution: Sapphire 0.003% F.S.; Quartz 0.00006% F.S.
  • Accuracy: Sapphire 0.05% F.S; Quartz 0.024% F.S


  • Acoustic Density
  • Sensor: Vibrating Element
  • Range: 0 - 2 g/cc
  • Resolution: 0.01 g/cc
  • Accuracy: 0.03 g/cc


  • Fluid Capacitance
  • Resolution: 0.1%
  • WHI Accuracy: 2% (range 0% - 30%); 5% (range 30% - 60%)


  • Casing Collar Locator
  • Detector Type: Electromagnetic


  • X-Y Caliper
  • Range: 2.0 to 9.0 inches
  • Resolution: +/- 0.02 inches
  • Accuracy: +/- 0.1 inches


  • Pressure Bulkhead
  • Range: 15,000 psi



• Well 350°F / 15Kpsi operating Temperature /Pressure

  Complete hardware and software solution for acquiring Surface and downhole production data

  Bi-directional, digital communications link over conventional single conductor wireline

  Surface Readout (SRO) or Memory mode operation

  Tool string configuration parameters

  “Smart Sensor” technology allows each sensor to identify itself upon operator query

  Built in Accelerometer sensor measures tool movement and inclination

  Compatible with the “Warrior” logging system built by Scientific Data Systems
